RAVEN IMPLEMENT STEERING

DISC STEERING

Go directly to the ordering guide


DISC STEERING


DESCRIPTION

Raven has over a decade of experience with disc steering and can confidently call itself the market leader in this segment.

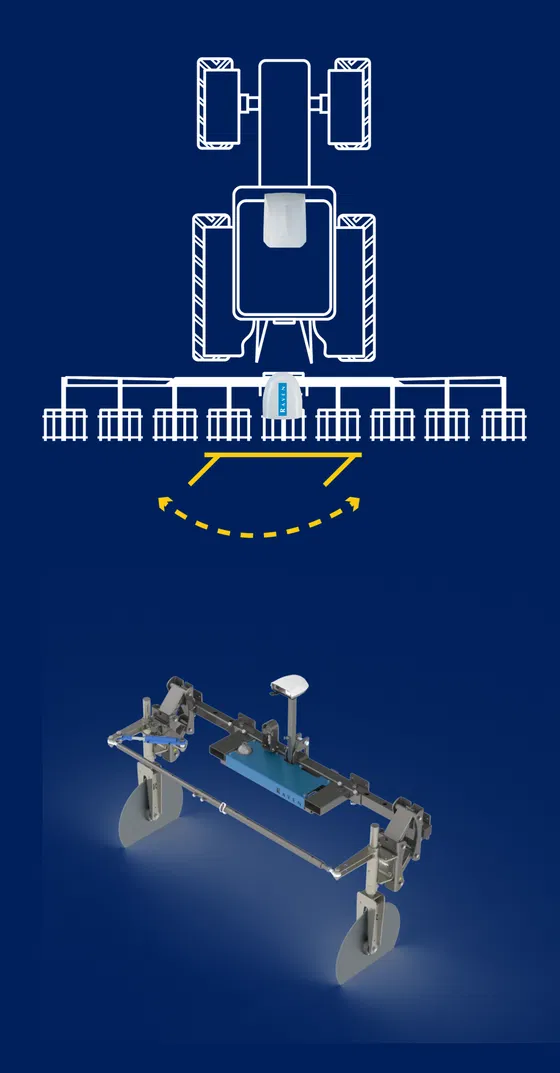

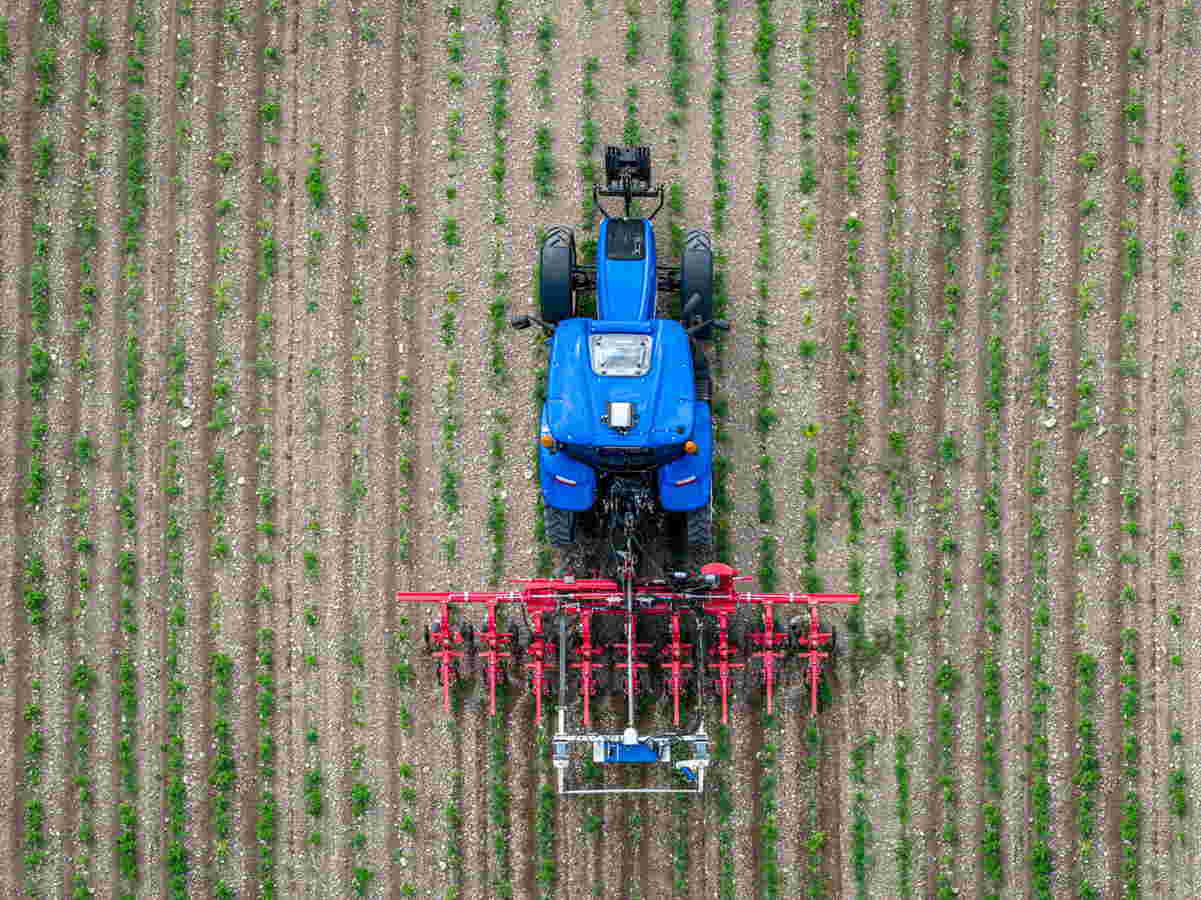

Depending on the size and type of implement, at least one disc coulter is installed behind the implement. For small drills and other light implements, a single disc is often sufficient. Large, heavy-weight machines require at least two steering disks that are connected to each other by a rod. In the case of folding devices, the rod is replaced by two interconnected hydraulic cylinders. Raven’s disc system prevents the device from slipping to the side. The tractor and implement are no longer offset, but rather operate in one line.

KEY FEATURES

  • High accuracy cultivating, even with slopes.
  • Both tractor and implement are working on the exact same refrence line.
  • Tractor and implement steering are completely independent, offering high accuracy.
  • Control with only one screen in the cabin.
  • DISC STEERING can be moved between different machines.
  • Increase productivity and save labor-cost.


 Ordering guide

DISC STEERING PART NUMBERS

#CNH PNPN DESCRIPTION
BASE COMPONENTS
ANTENNA KIT
A1
117-2000-029700S, RTK, IMPLEMENT
ANTENNA CABLING
B1115-4010-159CABLE, IMPLEMENT STEERING, 1.5M (5') LONG
B2115-4010-130CABLE, IMPLEMENT STEERING, 4.5M (15') LONG
B3115-4010-160CABLE, IMPLEMENT STEERING, 6.0M (20') LONG
IMPLEMENT CABLING
IBIC TO GEN 1 ISOBUS CABLE
C1115-7100-029CABLE, ADAPTER, 0.6M (2’) LONG
C2115-7100-006CABLE, ADAPTER, 1.8M (6’) LONG
C3115-7100-007CABLE, ADAPTER, 3.6M (12’) LONG
C4115-7100-008CABLE, ADAPTER, 5.0M (17’) LONG
C5115-7100-009CABLE, ADAPTER, 7.3M (24’) LONG
C6115-7100-010CABLE, ADAPTER, 11.0M (36’) LONG
IMPLEMENT EXTENSION CABLING
Optional115-7100-001CABLE, EXTENSION, 2.75M (9’) LONG
Optional115-7100-002CABLE, EXTENSION, 3.6M (12’) LONG
Optional115-7100-003CABLE, EXTENSION, 5.0M (17’) LONG
Optional115-7100-004CABLE, EXTENSION, 7.3M (24’) LONG
Optional115-7100-035CABLE, EXTENSION, 9.0M (30’) LONG
ISOBUS SOCKET CABLE
Optional115-7100-013CABLE, ADAPTER, GEN 1 TO IBBC
To connect ISOBUS implement on the same ISO line as implement steering
IMPLEMENT ECU KIT
D1
117-4020-002ECU, IMPLEMENT, GEN 1 ISOBUS, RS1 TRACTOR
(including: ECU ISO TC1 LOW SPEED STEER; ECU IMPLEMENT DRIVER UNIT (IDU); CABLE IMPLEMENT SC1/600S)
CNH NGMA tractor or any tractor with RS1 antenna and CR7+/CR12+ display – no additional cabling required.
Skip the table below and go directly to Disc Steering section (from F1).
RTK CORRECTIONS AND TRACTOR XTRACK ERROR
mandatory for listed platforms
CNH TRACTOR WITH AFS PRO 700/ INTELLIVIEW IV AND 372/392 ANTENNA
E1117-4020-011KIT, ISO IMPLEMENT ONLY, CNHi TMR TIER 4B (AFS Pro 700/ IntelliView IV/ S-TECH 700 with RV55 modem, min package 2310)
E2117-4020-013KIT, ISO IMPLEMENT ONLY, CNHi TMR TIER 4B, PCM MODEM (AFS Pro 700/ IntelliView IV/ S-TECH 700 with PCMf modem, min package 2310)
OTHERS
E3117-4020-010KIT, ISO IMPLEMENT ONLY, RTK CONNECT, FENDT
E4117-4020-014KIT, ISO IMPLEMENT ONLY, RTK CONNECT, JOHN DEERE 6R ONLY
GENERIC SYSTEM
(Any other tractor with other guidance system does not have xTrack error but capable to read RTCM3.x.
Limited functionality AB and A+ lines. Harness only, tee-in DB9 connection for RTCM3.x.)
E5117-4020-008KIT, ISO IMPLEMENT ONLY, RTK CONNECT, SLINGSHOT FIELD HUB
DISC STEERING
TWO DISCS, MECHANICAL LINK
LS = LOAD SENSE (use with Power Beyond) / OC= OPEN CENTER (use of 1 electro-distributor with permanent flow)
F1117-8000-484KIT, TWO DISCS, MECHANICAL LINK, LS, WITHOUT STONE PROTECTION
F2117-8000-485KIT, TWO DISCS, MECHANICAL LINK, OC, WITHOUT STONE PROTECTION
F3117-8000-528KIT, TWO DISCS, MECHANICAL LINK, LS, WITH STONE PROTECTION
F4117-8000-529KIT, TWO DISCS, MECHANICAL LINK, OC, WITH STONE PROTECTION
DISC STEERING FRAME
G5117-8000-372KIT, DISC FRAME, GENERIC, 2 DISCS, TRACK WIDTH 1500/1800/2000/2250MM
DISC STEERING HYDRAULIC HOSE KIT – TRACTOR TO DISC MANIFOLD
H1117-8141-005KIT, HOSE, TRACTOR TO DISCFRAME, WITH STONE PROTECTION, 3.0M
H2117-8141-006KIT, HOSE, TRACTOR TO DISCFRAME, WITH STONE PROTECTION, 4.0M
H3117-8141-007KIT, HOSE, TRACTOR TO DISCFRAME, WITH STONE PROTECTION, 6.0M
H4117-8141-008KIT, HOSE, TRACTOR TO DISCFRAME, WITH STONE PROTECTION, 8.0M
GENERIC FRAME HYDRAULIC HOSE KIT – MANIFOLD TO CYLINDER(S)
I1117-8141-001KIT, HOSE, DISCFRAME, WIDTH 1500MM, WITH STONE PROTECTION
I2117-8141-002KIT, HOSE, DISCFRAME, WIDTH 1800MM, WITH STONE PROTECTION
I3117-8141-003KIT, HOSE, DISCFRAME, WIDTH 2000MM, WITH STONE PROTECTION
I4117-8141-004KIT, HOSE, DISCFRAME, WIDTH 2250MM, WITH STONE PROTECTION
I5117-8141-013KIT, HOSE, DISCFRAME, WIDTH 1500MM, WITHOUT STONE PROTECTION
I6117-8141-014KIT, HOSE, DISCFRAME, WIDTH 1800MM, WITHOUT STONE PROTECTION
I7117-8141-015KIT, HOSE, DISCFRAME, WIDTH 2000MM, WITHOUT STONE PROTECTION
I8117-8141-016KIT, HOSE, DISCFRAME, WIDTH 2250MM, WITHOUT STONE PROTECTION
DISC STEERING FRAME PARTS
Optional117-8000-388KIT, DISC FRAME ADAPTER, STRUIK RF, WITH STONE PROTECTION
Optional117-8000-315KIT, DISC FRAME ADAPTER, BASELIER FK310, WITH STONE PROTECTION
Optional117-8000-378KIT, DISC FRAME ADAPTER, GRIMME GF
