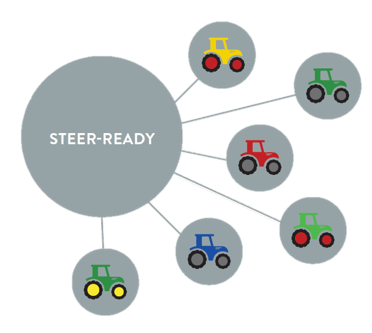

STEER-READY GUIDANCE:
Focus on your operation and let Raven take care of steering
Raven can also connect with steer ready tractors and machines directly from the manufacturer, including: Amazone, Case IH AccuGuide, Challenger, Class Autopilot, Deutz, Fendet, JCB, John Deere etc.

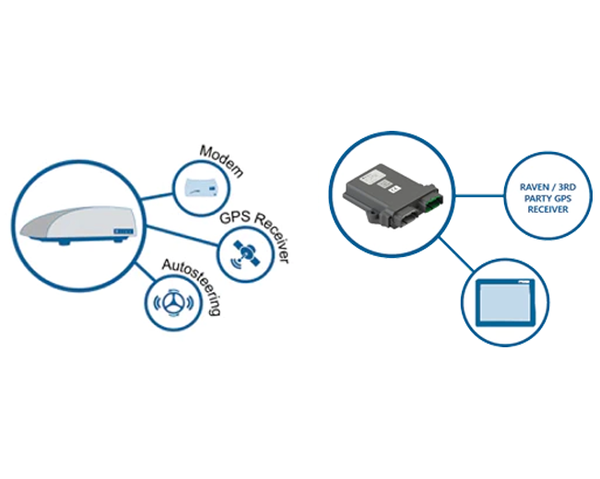

ARCHITECTURE:
RS1™ or SC1™ STEERING CONTROLLER

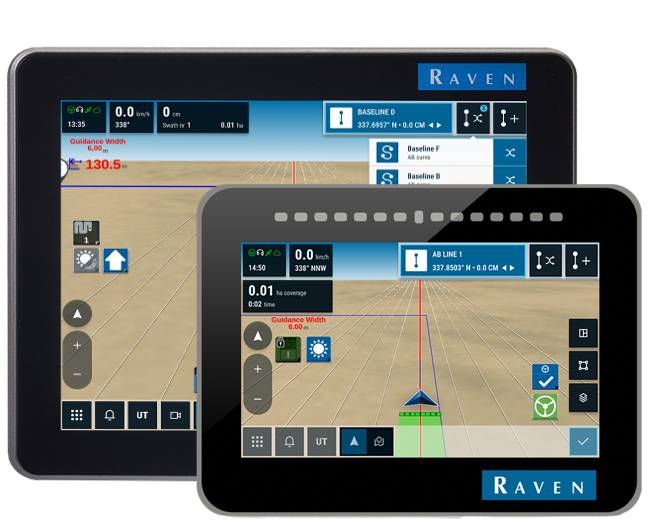

CR12®+ or CR7®+
DISPLAY

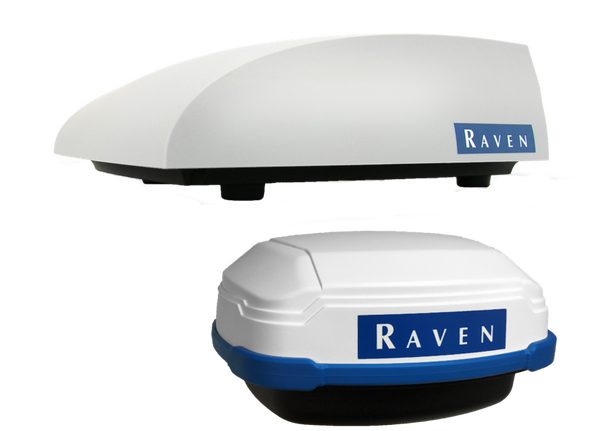

RAVEN RS1™ or 500S™
RECEIVER
![]()
Ordering guide
STEER-READY GUIDANCE PART NUMBERS
| # | CNH PN | DESCRIPTION |
STEER-READY CR12+ or CR7+ & RS1 or 500S/SC1 | ||
CRx Display & Cabling | ||
| A1 | 117-2300-017 | CR12+, UT UNLOCK |
| A2 | 117-2295-040 | CR7+, UT UNLOCK |
RS1 Receiver with SBAS OR RTK Unlock | ||
| B1 | 117-5000-001 | KIT, 500S/SC1 W/ ROOF BRACKET |
| B2 | 117-5000-004 | KIT, 500S/SC1, GS-lite, W/ ROOF BRACKET |
| B3 | 117-5001-038 | RS1, SBAS, EURO 4G CELL MODEM, STEERING + CELLULAR UNLOCKED |
| B4 | 117-5001-037 | RS1, RTK WITH RTK-L, EURO 4G CELL MODEM, STEERING, CELLULAR UNLOCKED |
Machine Completion Kit | ||
| C | 117-5035-050 | KIT, INSTALL, STEER READY, CRX-ROS, RAM-C |
| PLATFORM KITS | ||
| CNH | ||
| D1 | 117-5032-173 | KIT, PLATFORM, CNH TMR TIER 4B STEER-READY, CR7 |
| D2 | 117-5032-174 | KIT, PLATFORM, CNH TMR TIER 4B STEER-READY, CR12 |
| D3 | 117-5032-188 | KIT, PLATFORM, CNH CCM STAGE V MY23 W/ AG392 CABLE, STEER-READY, CR7 |
| D4 | 117-5032-189 | KIT, PLATFORM, CNH CCM STAGE V MY23 W/ AG392 CABLE, STEER READY, CR12/V4+ |
| D5 | 117-5032-184 | KIT CNH INTELLISTEER TIER 4B CR7 RS1 W/O IBBC |
| D6 | 117-5032-185 | KIT CNH INTELLISTEER TIER 4B CR7 RS1 W/ IBBC |
| D7 | 117-5032-186 | KIT CNH INTELLISTEER TIER 4B CR12 RS1 W/O IBBC |
| D8 | 117-5032-187 | KIT CNH INTELLISTEER TIER 4B CR12 RS1 W/ IBBC |
| D9 | 117-5032-239 | KIT CIH MGNM MY14-18 STRDY W/O PRO 700, CR7 RS1 |
| D10 | 117-5032-240 | KIT CIH MGNM MY14-18 STRDY W/O PRO 700, CR12 RS1 |
| D11 | 117-5032-241 | KIT CIH MGNM MY14-18 STRRDY W/ PRO 700, CR7 RS1 |
| D12 | 117-5032-242 | KIT CIH MAGNUM STRDY W/ PRO 700, CR12 RS1 |
| John Deere | ||
| D13 | 117-5034-224 | KIT, PLATFORM, JOHN DEERE ISO AR, CR7 |
| D14 | 117-5034-225 | KIT, PLATFORM, JOHN DEERE ISO AR, CR12/V4+ |
| D15 | 117-5034-254 | KIT JD AR6000 SERIES CR7 RS1 W/O IBBC |
| D16 | 117-5034-255 | KIT JD AR6000 SERIES CR7 RS1 W/ IBBC |
| D17 | 117-5034-256 | KIT JD AR6000 SERIES CR12 RS1 W/O IBBC |
| D18 | 117-5034-257 | KIT JD AR6000 SERIES CR12 RS1 W/ IBBC |
| D19 | 117-5034-264 | KIT JD AR7000 SERIES CR7 RS1 W/O IBBC |
| D20 | 117-5034-265 | KIT JD AR7000 SERIES CR7 RS1 W/ IBBC |
| D21 | 117-5034-266 | KIT JD AR7000 SERIES CR12 RS1 W/O IBBC |
| D22 | 117-5034-267 | KIT JD AR7000 SERIES CR12 RS1 W/ IBBC |
| D23 | 117-5034-324 | KIT, JOHN DEERE NON-ISO AR 8000 SERIES, CR7, RS1, W/O IBBC |
| D24 | 117-5034-325 | KIT, JOHN DEERE NON-ISO AR 8000 SERIES, CR7, RS1, W/IBBC |
| D25 | 117-5034-326 | KIT, JOHN DEERE NON-ISO AR 8000 SERIES, CR12, RS1, W/O IBBC |
| D26 | 117-5034-327 | KIT, JOHN DEERE NON-ISO AR 8000 SERIES, CR12, RS1, W/IBBC |
| D27 | 117-5034-246 | KIT, PLATFORM, JOHN DEERE 5R AR, CR7 |
| D28 | 117-5034-247 | KIT, PLATFORM, JOHN DEERE 5R AR, CR12/V4+ |
| D29 | 117-5034-274 | KIT JD 6M INTERIM TIER 4 CR7 RS1 W/O IBBC |
| D30 | 117-5034-275 | KIT JD 6M INTERIM TIER 4 CR7 RS1 W/ IBBC |
| D31 | 117-5034-276 | KIT JD 6M INTERIM TIER 4 CR12 RS1 W/O IBBC |
| D32 | 117-5034-277 | KIT JD 6M INTERIM TIER 4 CR12 RS1 W/ IBBC |
| D33 | 117-5034-284 | KIT JD 6M FINAL TIER4 MY2018 CR7 RS1 W/O IBBC |
| D34 | 117-5034-285 | KIT JD 6M FINAL TIER4 MY2018 CR7 RS1 W/ IBBC |
| D35 | 117-5034-286 | KIT JD 6M FINAL TIER4 MY2018 CR12 RS1 W/O IBBC |
| D36 | 117-5034-287 | KIT JD 6M FINAL TIER4 MY2018 CR12 RS1 W/ IBBC |
| D37 | 117-5034-294 | KIT JD 6M AR MY20 CR7 RS1 |
| D38 | 117-5034-295 | KIT, JOHN DEERE 6M AR MY20-, CR7, RS1, W/ IBBC |
| D39 | 117-5034-296 | KIT, JOHN DEERE 6M AR MY20-, CR12, RS1, W/O IBBC |
| D40 | 117-5034-297 | KIT, JOHN DEERE 6M AR MY20-, CR12, RS1, W/IBBC |
| D41 | 117-5034-304 | KIT, JOHN DEERE, 6J-SERIS AR, LATAM, CR7, RS1, W/O IBBC |
| D42 | 117-5034-305 | KIT, JOHN DEERE, 6J-SERIES AR, LATAM, CR7, RS1, W/IBBC |
| D43 | 117-5034-306 | KIT, JOHN DEERE, 6J-SERIES AR, LATAM, CR12, RS1, W/O IBBC |
| D44 | 117-5034-307 | KIT JOHN DEERE 6J-SERIES AR LATAM CR12 RS1 W/IBBC |
| D45 | 117-5034-312 | KIT JD 7J-SERIES AR LATAM CR7 RS1 W/O IBBC |
| D46 | 117-5034-313 | KIT JD 7J-SERIES AR LATAM CR7 RS1 W/IBBC |
| D47 | 117-5034-314 | KIT JD 7J-SERIES AR LATAM CR12 RS1 W/O IBBC |
| D48 | 117-5034-315 | KIT JD 7J-SERIES AR LATAM CR12 RS1 W/IBBC |
| Fendt | ||
| D49 | 117-5033-192 | KIT, PLATFORM, FENDT VARIOGUIDE READY (CAN) 300/500/700/800/900/1000 SERIES, CR7 |
| D50 | 117-5033-193 | KIT, PLATFORM, FENDT VARIOGUIDE READY (CAN) 300/500/700/800/900/1000 SERIES, CR12/V4+ |
| D51 | 117-5033-272 | KIT, PLATFORM, FENDT 200 VARIOGUIDE, MY21, W/ FENDT ONE, CR7 |
| D52 | 117-5033-273 | KIT, PLATFORM, FENDT 200 VARIOGUIDE, MY21, W/ FENDT ONE, CR12/V4+ |
| D53 | 117-5033-197 | KIT, PLATFORM, FENDT VARIOGUIDE, MY21, W/ FENDT ONE, CR7 |
| D54 | 117-5033-198 | KIT, PLATFORM, FENDT VARIOGUIDE, MY21, W/ FENDT ONE, CR12/V4+ |
| D55 | 117-5033-276 | KIT, PLATFORM, FENDT 9XX/10XX VARIOGUIDE, W/FENDT ONE, CR7 |
| D56 | 117-5033-277 | KIT, PLATFORM, FENDT 9XX/10XX VARIOGUIDE, W/FENDT ONE, CR12/V4+ |
| Massey | ||
| D57 | 117-5033-206 | KIT, PLATFORM, MASSEY FERGUSON/VALTRA < 2018 STEER-READY, CR7 |
| D58 | 117-5033-207 | KIT, PLATFORM, MASSEY FERGUSON/VALTRA < 2018 STEER-READY, CR12/V4+ |
| D59 | 117-5033-256 | KIT, PLATFORM, VALTRA SMARTTOUCH STEER-READY, CR7 |
| D60 | 117-5033-257 | KIT, PLATFORM, VALTRA SMARTTOUCH STEER-READY, CR12/V4+ |
| D61 | 117-5033-246 | KIT, PLATFORM, MASSEY FERGUSON DATATRONIC 5 STEER-READY, CR7 |
| D62 | 117-5033-247 | KIT, PLATFORM, MASSEY FERGUSON DATATRONIC 5 STEER-READY, CR12/V4+ |
| D63 | 117-5033-248 | KIT, PLATFORM, MASSEY FERGUSON DATATRONIC 5 TIER 5 STEER-READY, CR7 |
| D64 | 117-5033-249 | KIT, PLATFORM, MASSEY FERGUSON DATATRONIC 5 TIER 5 STEER-READY, CR12/V4+ |
| D65 | 117-5033-261 | KIT, PLATFORM, MASSEY FERGUSON 5S STEER-READY, CR7 |
| D66 | 117-5033-262 | KIT, PLATFORM, MASSEY FERGUSON 5S STEER-READY, CR12 |
| D67 | 117-5033-280 | KIT, PLATFORM, MASSEY FERGUSON 6S/7S, STEER-READY, CR7 |
| D68 | 117-5033-281 | KIT, PLATFORM, MASSEY FERGUSON 6S/7S, STEER-READY, CR12/V4+ |
| D69 | 117-5033-265 | KIT, PLATFORM, MASSEY FERGUSON 8S STEER-READY, CR7 |
| D70 | 117-5033-266 | KIT, PLATFORM, MASSEY FERGUSON 8S STEER-READY, CR12/V4+ |
| D71 | 117-5033-014 | KIT, PLATFORM, VALTRA BH SERIES, STEER-READY, CR7 |
| D72 | 117-5033-015 | KIT, PLATFORM, VALTRA BH SERIES, STEER-READY, CR12/V4+ |
| Challenger | ||
| D73 | 117-5033-018 | KIT, PLATFORM, CHALLENGER MT 7XX & 8XX, C/D/E, AUTOGUIDE, CR7 |
| D74 | 117-5033-023 | KIT, PLATFORM, CHALLENGER MT 7XX & 8XX, C/D/E, AUTOGUIDE, CR12/V4+ |
| D75 | 117-5033-021 | KIT, PLATFORM, CHALLENGER MT 7XX & 8XX, C/D/E, NON-AUTOGUIDE, CR7 |
| D76 | 117-5033-016 | KIT, PLATFORM, CHALLENGER MT 7XX & 8XX, C/D/E, NON-AUTOGUIDE, CR12/V4+ |
| CLAAS | ||
| D77 | 117-5036-025 | KIT, PLATFORM, CLAAS OSI TRACTORS MY2022 OR NEWER, CR7 |
| D78 | 117-5036-026 | KIT, PLATFORM, CLAAS OSI TRACTORS MY2022 OR NEWER, CR12/V4+ |
| D79 | 117-5036-077 | KIT, PLATFORM, CLAAS OSI HARVESTERS, CR7 |
| D80 | 117-5036-078 | KIT, PLATFORM, CLAAS OSI HARVESTERS, CR12/V4+ |
| D81 | 117-5036-023 | KIT, PLATFORM, CLAAS OSI 2018-2022 STEER-READY, CR7 |
| D82 | 117-5036-024 | KIT, PLATFORM, CLAAS OSI 2018-2022 STEER-READY, CR12/V4+ |
| D83 | 117-5036-036 | KIT, PLATFORM, CLAAS ATP READY |
| D84 | 117-5036-037 | KIT, PLATFORM, CLAAS ATP READY |
| Amazone | ||
| D85 | 117-5035-020 | KIT, PLATFORM, AMAZONE PANTERA, CR7 |
| D86 | 117-5035-021 | KIT, PLATFORM, AMAZONE PANTERA, CR12/V4+ |
| Deutz Argrosky | ||
| D87 | 117-5037-007 | KIT, PLATFORM, DEUTZ AGROSKY READY, CR7 |
| D88 | 117-5037-008 | KIT, PLATFORM, DEUTZ AGROSKY READY, CR12/V4+ |
| Kubota | ||
| D89 | 117-5035-083 | KIT, PLATFORM, KUBOTA M7 STEER READY, CR7 |
| D90 | 117-5035-084 | KIT, PLATFORM, KUBOTA M7 STEER-READY, CR12/V4+ |
| MFWD | ||
| D90 | 117-5031-107 | KIT VERSATILE 2X0-3X0 MFWD MY 15 AND NEWER STEER READY CR7 RS1 |
| D91 | 117-5031-108 | KIT VERSATILE 2X0-3X0 MFWD MY 15 AND NEWER STEER READY CR12 RS1 |
| ARTIC | ||
| D92 | 117-5031-111 | KIT VERS ARTIC MY15+ STRDY CR7 |
| D93 | 117-5031-112 | KIT VERS ARTIC TRCTRS MU15+ SR |
| MCCORMICK | ||
| D94 | 117-5038-005 | KIT, PLATFORM, MCCORMICK X7/X8, CR7 |
| D95 | 117-5038-006 | KIT, PLATFORM, MCCORMICK X7/X8, CR12/V4+ |
| JCB FASTTRAC | ||
| D96 | 117-5035-120 | KIT, PLATFORM, JCB FASTTRAC 4000, MY 2015-2020, CR7 |
| D97 | 117-5035-121 | KIT, PLATFORM, JCB FASTTRAC 4000, MY 2015-2020, CR12/V4+ |
