IntelliSteer™ is the New Holland genuine GPS integrated autoguidance solution.

Managed directly from the regular machine operating screen, IntelliSteer™ brings you the best in term of GPS integration into the machine.

Intelliview™ 12 Display

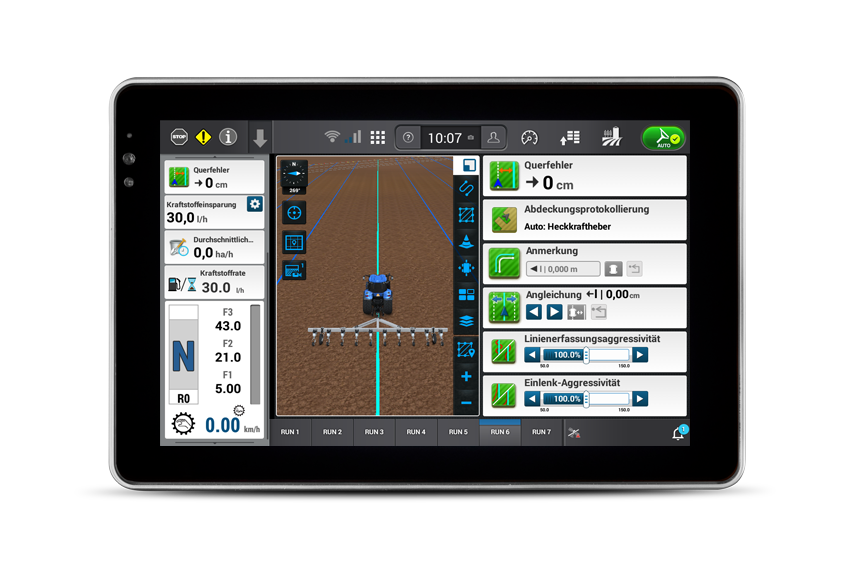

HIGH RESOLUTION COLOR TOUCH DISPLAY

  • 30,48 cm multi-touch screen
  • ISOBUS
  • Android based user interface
  • 4 camera ports
  • USB Port
  • Coverage Mapping
  • Vehicle telemetry
  • Agronomic data transfer
  • IntelliView 12 Remote display viewing / service support / software updates

PCM CONNECTIVITY

MODULE

​

MULTIPLE CONNECTIVITY OPTIONS

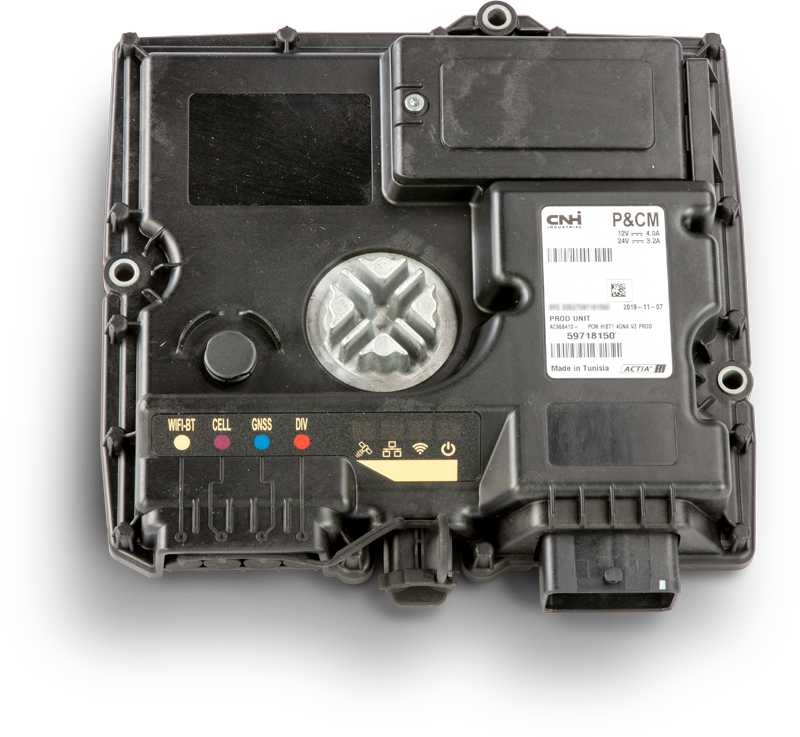

The P&CM is the processing center for all the Precision Farming & guidance functions, as well as the gateway for off-vehicle connectivity.

  • Vehicle Telemetry Data Transfer
  • Agronomic Data Cloud Transfer
  • Cellular Data Plan for File Transfer
  • 3rd Party Data Sharing
  • Remote Software Updates (Display/GNSS Receiver/PCM)

PLM™ CYGNUS RECEIVER

ROBUST POSITIONING AND BEST-IN-CLASS PERFORMANCE

The Cygnus GNSS receiver provides reliable and consistent terrain compensated position and heading information for use by the Auto Guidance & Precision Farming systems. Robust positioning and for the best-in-class performance:

  • GNSS Multi-Constellation: Capability of tracking all available GNSS constellations simultaneously (GPS, Galileo, Glonas & BeiDou). Increased uptime in challenging environments (tree lines and other signal  blockages).
  • Auto Smoothing™: Provides superior pass-to-pass performance in EGNOS positioning mode.
  • Auto Line Hold™: Especially useful when the receiver transitions from PLM2 to EGNOS because of lost signal.
  • Triple geostationary satellite tracking: Ability to track up to three PLM1/PLM2 geostationary  satellites simultaneously.
  • IMU: The inertial measurement unit (IMU) provides accurate position, velocity  and heading data independent from GNSS.
  • RTK Fill™: Signal losses will be bridged for up to 20 minutes. Just keep going without interruption – and maintain ultimate precision.

GNSS Correction Signal

Platform + Hoses Kit

  • Vehicle interface: Receives navigation commands from the P&CM which controls the vehicle’s steering when engaged.
  • Mechanical potentiometer: This unique steering sensor measures highly accurate wheel angle information on all terrain.

IntelliSteer™ IntelliView 12 is available for some New Holland platforms and can be ordered by three methods:

  1. Complete factory installation (refer to your tractor/combine price list).
  2. A factory installation of the hydraulic components with a field installation of GPS guidance components (IntelliSteer™ Ready machines)
  3. A complete in situ installation of both hydraulic and GPS components.

The following information will help you to order the field installation components for IntelliSteer™ Ready machines. For a in situ field hydraulic installation, you should consult the AGR DIA kits in eTIM with the tractor model and VAN number.

Ordering guide

1. Hardware

CNH PNDESCRIPTION
Display
91751988New Holland IntelliView 12 Display
GNSS Receiver
91737690PLM Cygnus - New Holland, Base Accuracy
Connectivity Module
91764687PCM3 - 4G

2. Softwares Applications

CNH PNDESCRIPTIONCOMMENTS
Intelliview 12 Activations
VMSActivation, Service, Machine Control, 12” DisplayOption for replacement or 2nd display
VMSBase PF&G (Precision Farming & Guidance) ActivationBasic Guidance Lines (AB, Heading, Curve), Boundaries, Obstacles, Coverage Mapping, Manual Guidance, Electric Steering
VMSAdvanced Guidance LinesIncludes Spiral, Pivot, FieldSwath, MultiSwath, Competitive Line Generation. Requires Base PF&G Activation
VMSMultiSwath Line SplittingAllows generation of MultiSwath Line set where multiple sets (configurable) of guidance lines are generated based on driven MultiSwath Lines. Requires Adanced Guidance Lines Activation
VMSISO TC BasicEnables all Task Controller Functions except Section Control and Variable Rate (Primarily logging functions enabled). Requires ISO UT Activation for Display
VMSAdvanced Section ControlSection Control from basic to 128 sections. Requires ISO TC Basic & UT Activation
VMSBase Variable Rate (2 Products) Enables Variable Rate Control for up to 2 Products. Requires ISO TC Basic & UT Activation
VMSMulti Product Variable Rate (6 Products)Extends Variable Rate capability from 2 to 6 Products. Requires ISO TC Basic Activation
VMSEnd of Row Turn (IntelliTurn)End of Row/Swath  Turn (IntelliTurn). Requires Base PF&G Activation
VMSISOBUS Universal Terminal Activation - 12" DisplayEnables ISO Universal Terminal Function for use when controlling ISO Implements
VMSHydraulic Steering - IntelliSteerEnables Hydraulic Guidance functionality for IntelliSteer

The Precision Farming and Guidance Activations can be different for each tractor model, in the attached list you will find a generic list of the options available.

To be sure of the options available for a specific vehicle, please verify with VMS using the model, the VAN and/or the serial number of the components. Also note that on some tractor models packages with different groupings of options have been generated.

3. GNSS Upgrades and Subscriptions

CNH PNDESCRIPTIONCOMMENTS
GNSS Receiver Accuracy Upgrades
VMSBase to Medium Accuracy UpgradeRequired to use PLM 3 Correction Signals
VMSBase to High (RTK) Accuracy UpgradeRequired to use RTK Corrections
GNSS Receiver Correction Signal Subscriptions
VMSPLM 1 - 1 Year Subscription
  • PLM 1 does not require any GNSS accuracy upgrades - can run on a Base Accuracy Receiver
  • Provides 15 cm Pass to Pass Accuracy
VMSPLM 1 – 5 Year Subscription
VMSPLM 3 - 3 Month Subcription
  • PLM 3 Requires Medium Accuracy GNSS Receiver Upgrade for Operation
  • Provides 3 cm Repeatable Accuracy
VMSPLM 3 - 1 Year Subscription
VMSPLM 3 - 2 Year Subscription
VMSPLM 3 - 3 Year Subscription
VMSPLM 3 – 5 Yr Subscription
GNSS Receiver Accuracy Upgrades
VMS1 YR NTRIP for IntelliView 12 and PCM
  • Required when RTK Corrections are delivered via modem using NTRIP protocol
  • NTRIP requires High (RTK) GNSS Accuracy Upgrade
  • RTK Correction Signal sourced separately
VMS3 YR NTRIP for IntelliView 12 and PCM
VMS5 YR NTRIP for IntelliView 12 and PCM

4. Connectivity Subscriptions

CNH PNDESCRIPTIONCOMMENTS
PLM IntelliField
VMS1 YR IntelliField Subscription, IntelliView 12 & PCMRequires an active MyPLM Connect Subscription for Operation
VMS3 YR IntelliField Subscription, IntelliView 12 & PCM
VMS5 YR IntelliField Subscription, IntelliView 12 & PCM

5. Hardware Accessories

CNH PNDESCRIPTIONCOMMENTS
RTK Radio
51415542X-RTK Radio - 900 MHzCompatible with Trimble RTK Base Station.
51536781X-RTK Radio - 430-450 MHz
51415534X-RTK Radio - 450-470 MHz
51435797Integrated RTK Radio - 900 MHzCompatible with Next Gen RTK Base Station.
51435794Integrated RTK Radio - 430-450 MHz
51435793Integrated RTK Radio - 450-470 MHz
X-RTK Radio Completion Harness
92123712X-RTK Radio to Main Harness Jumper HarnessConnects X-RTK radio to jumper on main harness.
